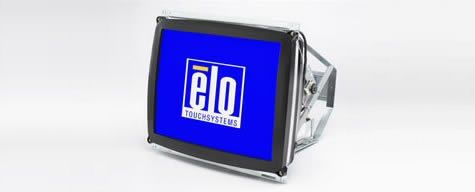

2187C 21" CRT Open Frame Touchmonitor (Discontinued June 2007)
Overview
Elo IntelliTouch® ZB SAW touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo iTouch touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch ZB (Antireflective, Worldwide) - C21274-000
Color del empaque
Negro
Tecnología y capacidad táctil
SAW Sin bisel (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Tamaño de la diagonal
21.0" diagonal, Active matrix TFT LCD
Grosor del monitor
19.45" / 494 mm
Relación de aspecto
4:3
Área activa
Horizontal: 14.96" / 380 mm
Vertical: 11.22" / 285 mmResolución
1024 x 768 at 85 Hz (VESA)
Otras resoluciones disponibles
1024 x 768 at 85 Hz
800 x 600 at 85 Hz
640 x 480 at 60 Hz
640 x 400 at 70 Hz
640 x 350 at 70 HzCantidad de colores
16.7 millones
Dot Pitch
0.25 mm
Radio de contraste
300:1
Interface táctile
Serial
Pantalla en pantalla (OSD)
Multilingual OSD
Video Bandwidth
100 MHz
Formato de entrada de video
Analog (no proprietary video card needed)
Entrada del conector para video señal
Mini D-Sub 15-Pin (female)
Consumo de energía (típico)
80 W typical, 90 W max.
Fuente de alimentación
100-240 VAC, 50-60 Hz
Frecuencia de entrada
Horizontal: 30-70 kHz
Vertical: 50-120 HzDimensiones del monitor (sin soporte)
18.58" x 16.22" x 19.45" / 472 mm x 412 mm x 494 mm
Peso sin empaque
55 lbs / 25.0 kg
Peso con empaque
66 lbs / 30.0 kg
Temperatura de operación
5°C to 55°C
Temperatura de almacenamiento
-20°C to 65°C
Humedad
Operating: 10% to 80%
Storage: 5% to 95%
noncondensingMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Otras características
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and PlayGarantía
Contactar con Elo
Aprobaciones y declaraciones reglamentarias
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CB (all members), CE, VCCI, C-Tick, Nevada SR 14, MPR II, DHHS
Cables de energía
A special locking power cable is required.
Power cables which may be suitable are available separately:
North American version (drawing MS500325 Rev B, 79K PDF)
European version (drawing MS500324 Rev B, 85K PDF)Cables táctiles/de video
Detachable touch and video cables are included
