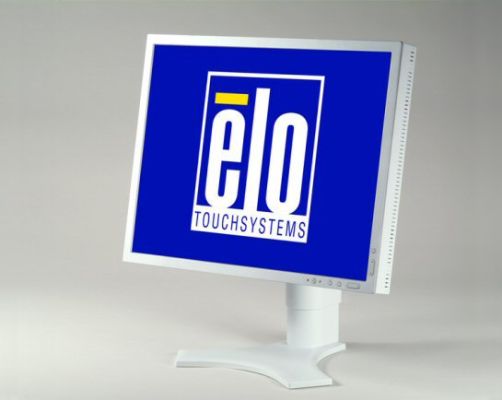

2020L 20" Touchscreen Monitor (Discontinued January 2007)
Overview
The 2020L touchmonitor is designed for retail POS, industrial, and government applications as well as interactive digital signage. The large display area is suitable for many different environments, including flight simulators, industrial equipment, interactive digital signage, and retail.
Other features.
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- High quality panel with 178° viewing angle
- Available in black or beige
- Can be used in portrait mode
- Adjustable height
- Carrying handle for easy transport
- Quick release stand
- Desktop stand can be removed or reversed for wall mounting option
- VESA mounting option
- Sealed touchscreen
- Controls on the side rather than the front
- Digital on-screen display (OSD)
Presupuesto
-
Técnico
Número(s) de Parte(s)
AccuTouch (USB, Antiglare, Worldwide) - E418308
AccuTouch (Serial, Antiglare, Worldwide) - E854384
AccuTouch (USB, Antiglare, Worldwide) - E973889
IntelliTouch (USB, Antiglare, Worldwide) - E637315
IntelliTouch (Serial, Antiglare, Worldwide) - E994124
IntelliTouch (USB, Antiglare, Worldwide) - E414923
IntelliTouch (Serial, Antiglare, Worldwide) - E735022Color del empaque
Black or Beige
Tecnología y capacidad táctil
Resistiva de 5 hilos (AccuTouch®) - Táctil simple
SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simpleTamaño de la diagonal
20.1" diagonal, Active matrix TFT L
Relación de aspecto
4:3
Área activa
16.14" x 12.12" / 409.9mm x 307.8mm
Resolución
1600 x 1200 at 60 Hz
Otras resoluciones disponibles
1600 x 1200 at 60 Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60-85 Hz
1200 x 1600 at 60 Hz
1152 x 864 at 70-85 Hz
1152 x 870 at 75 Hz
1024 x 768 at 60-85 Hz
832 x 624 at 75 Hz
800 x 600 at 56-85 Hz
720 x 400 at 70-85 Hz
640 x 480 at 60-85 Hz
640 x 400 at 70-85 Hz (digital)Ángulo de visión
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 280 nits
AccuTouch: 238 nits
IntelliTouch: 266 nitsDot Pitch
0.255 mm
Tiempo total de respuesta (tipico)
16 msec
Radio de contraste
700:1
Touch Interfaces
Serial: E854384, E994124, E735022
USB: E418308, E973889, E637315, E414923Pantalla en pantalla (OSD)
Digital
Entrada del conector para video señal
15pin D-sub, DVI-D, DVI-I and VGA
Consumo de energía (típico)
On: 50W
Power saving mode: < 1WFuente de alimentación
Internal AC
Voltaje de entrada
AC 100–120V; AC 220–240V
Frecuencia de entrada
Analog
Horizontal: 31.5–91.1 kHz / Vertical: 50–85 Hz
Digital
Horizontal: 31.5–99.4 kHz / Vertical: 50–85 HzDimensiones del monitor (sin soporte)
17.3" x 13.4" x 3.3" / 439.2mm x 340mm x 85mm
Dimensiones del monitor (con soporte)
17.3" x 22.3" x 9.7" / 439.2mm x 565.5mm x 247.3mm
Peso (con soporte)
21.4 lbs / 9.7 kg
Peso sin empaque
15.4 lbs / 7.0 kg
Temperatura de operación
5°C to 35°C / 41°F to 95°F
Temperatura de almacenamiento
-10°C to 60°C / 14°F to 140°F
Humedad
Operating: 30%-80%
Storage: 10%-85%
noncondensingMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
40,000 – 50,000 hours
Opciones de montaje
100 mm VESA mount
Removable and adjustable base
Wall mountableGarantía
4-years parts and labor, including backlight
Vida de la lámpara de contraluz
40,000 hours until half brightness
Aprobaciones y declaraciones reglamentarias
The approved monitor is not submitted for re-certification after touch modification.
