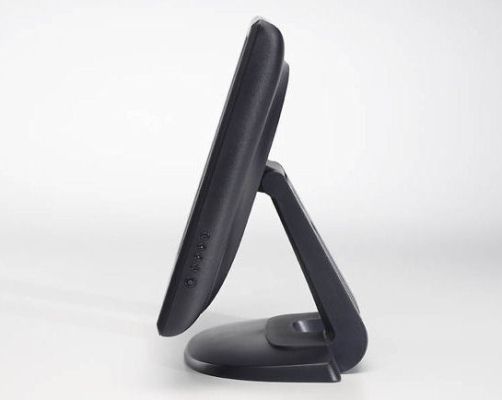

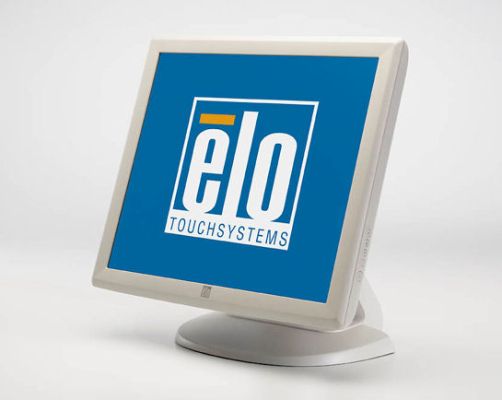

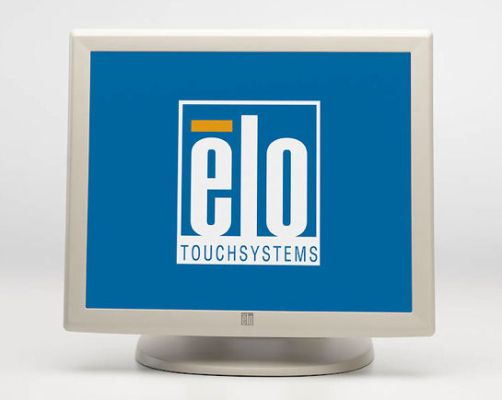

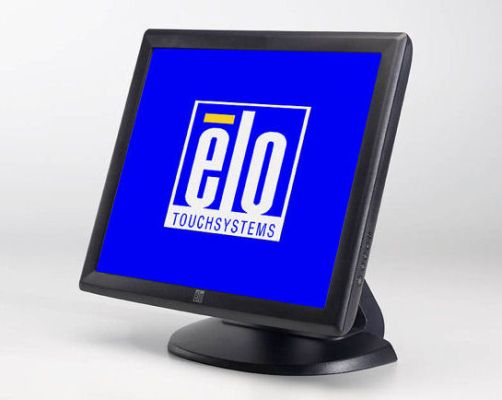

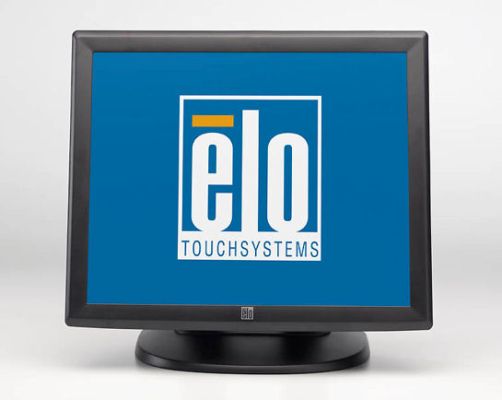

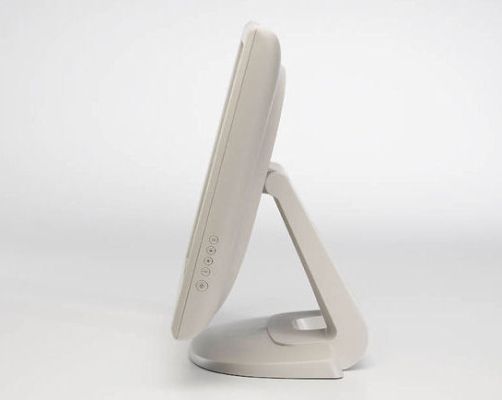

1928LM 19" Touchscreen Monitor (Discontinued June 2015)
Cómo comprar

Overview

The fully featured 1928L touchmonitor offers best-in-class optical performance mated to the medical industry's leading touch technologies–IntelliTouch surface acoustic wave, APR (acoustic pulse recognition), and AccuTouch five-wire resistive–in addition to a combination touch controller, DVI, VGA and built-in speakers. The product can be ordered in beige or gray color, touch and non-touch enabled versions.

The 1928L carries a wide array of electronic certifications, RoHS compliance and includes an innovative IPX1 enclosure design which sheds water and is safe from liquid drops and spills. As a result the 1928L is an excellent fit for a wide variety of healthcare applications. The Elo medical touchmonitor is also a cost-effective solution for nurse station, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in/registration applications, as well as non-medical applications benefiting from DVI-D input, speakers and best-in-class image performance.

Other features.
  • A wide array of electronic certifications and IPX1 drip-proof enclosure
  • Long lasting product cycle–enclosure controlled by Elo specifications
  • Touch can be activated with gloved hands
  • 5-second power down delay (prevents accidental power shut down)
  • Leading edge optical performance
  • 178° x 178° viewing angle
  • 1300:1 contrast ratio
  • 300-nit brightness
  • Analog and digital (DVI-D) video inputs
  • Built in speakers located in the display head
  • "Designed for touch" features such as a stable tilt stand
  • Available with AccuTouch Five-Wire Resistive Technology, Acoustic Pulse Recognition Technology, IntelliTouch Surface Wave Technology, and as non-touch enabled version
  • Combination controller (both Serial and USB)

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E935808
    AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E522556
    AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E686117
    AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E139551
    IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E897317
    IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E188117
    IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E746115
    IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E499616
    Non-touch (Antiglare, Asia/Pacific) - E205676
    Non-touch (Antiglare, Asia/Pacific) - E266366
    Non-touch (Antiglare, Americas, EMEA) - E939583
    Non-touch (Antiglare, Americas, EMEA) - E586024

    Color del empaque

    Dark Gray or Beige

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
    Sin Táctil

    Tamaño de la diagonal

    19'' diagonal, matriz activa TFT LCD (LED)

    Relación de aspecto

    5:4

    Área activa

    14.8" x 11.9" / 376mm x 301mm

    Resolución

    1280 x 1024 at 60 Hz

    Otras resoluciones disponibles

    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66, 72 or 75 Hz

    Ángulo de visión

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Cantidad de colores

    16.7 millones

    Brillo (tipico)

    LCD panel: 300 nits
    AccuTouch: 246 nits
    IntelliTouch: 276 nits

    Tiempo total de respuesta (tipico)

    20 msec

    Radio de contraste

    1300:1

    Interface táctile

    Dual serial/USB

    Pantalla en pantalla (OSD)

    Controls (side): menu, up, down, select, power
    Settings: contrast , brightness, H-position, V-position, recall default, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD timeout, auto adjust, input select
    Languages: English, French, Dutch, Spanish, Swedish, Italian, Chinese, Polish, Japanese
    Lockouts: power, user controls

    Altavoces

    2 watt/channel speakers located in display head

    Formato de entrada de video

    Analog VGA, DVI-D

    Entrada del conector para video señal

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Consumo de energía (típico)

    48W

    Fuente de alimentación

    External power adapter; efficiency rating: CAT: V

    Voltaje de entrada

    DC: 12.0 V ± 0.60 V

    Conector de entrada de audio

    DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)

    Frecuencia de entrada

    Horizontal: 31.5–80 kHz / Vertical: 56.3–75 Hz

    Dimensiones del monitor (con soporte)

    16.9" x 15.4" x 8.3" / 429mm x 390mm x 212mm

    Dimensiones de la caja de envio

    21.27" x 20.09" x 11.23" / 540mm x 510mm x 315mm

    Peso (con soporte)

    17.7 lbs / 8.0 kg

    Peso (sin soporte)

    13.5 lbs / 6.1 kg

    Peso de envío (con soporte)

    26.1 lbs / 11.8 kg

    Temperatura de operación

    0°C to 40°C / 32°F to 104°F

    Temperatura de almacenamiento

    -20°C to 60°C / -4°F to 140°F

    Humedad

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Capacidad de sellado

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

    50.000 horas demostradas

    Opciones de Soporte

    Tilt, removable

    Opciones de montaje

    100 mm VESA mount
    Threaded-through mounting holes, under stand

    Otras características

    2 stage DPMS
    VESA DDC, Plug & Play
    Five-second power down delay function
    Security lock receptacle

    Garantía

    3 años

    Aprobaciones y declaraciones reglamentarias

    North America / Worldwide models: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-TICK (Class B), ANSI, AAMI 60601-1:2005, UL 60601-1:2003, EN 60601-1-2:2007, CISPR 11:2009+A1:2010 Class B, IEC60529:IPX1

    Asia models: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-TICK (Class B), KC, CCC, China RoHS; ANSI, AAMI 60601-1:2005, UL 60601-1:2003, EN 60601-1-2:2007, CISPR 11:2009+A1:2010 Class B, IEC60529:IPX1

    Cables de energía

    North American and European power cables are included.

    For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo p/n: E235317.

    Juego de cables para reemplazo

    Elo p/n: E450339, available at additional cost.

    Caja de fuente de energía opcional

    Elo p/n: E448370, available at additional cost.

    Pluma Stylus IntelliTouch Opcional

    D82064-000, available at additional cost.

    Cables táctiles/de video

    Detachable touch and video cables are included.
