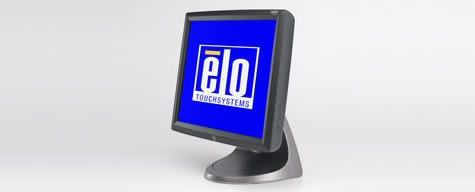

1925L 19" Touchscreen Monitor (Discontinued September 2007)
Overview
The 1925L 19" touchmonitor is the latest addition to the popular Elo desktop line, designed to address the key needs of touch applications requiring a large, visually appealing display. The 1925L can truly be called "designed for touch" with features such as a stable tilt base, OSD controls on the side with lockout feature for public use, speakers, and flexible input/output connectivity, including extra USB connections. It has a unique combination of performance, reliability, installation and ease-of-use, all with distinctive new styling.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Presupuesto
-
Técnico
Número(s) de Parte(s)
AccuTouch (Serial, Antiglare, Worldwide) - E974307
AccuTouch (USB, Antiglare, Worldwide) - E776519
IntelliTouch (USB, Antiglare, Worldwide) - E960780Color del empaque
Gris oscuro
Tecnología y capacidad táctil
Resistiva de 5 hilos (AccuTouch®) - Táctil simple
SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simpleTamaño de la diagonal
19'' diagonal, matriz activa TFT LCD (LED)
Relación de aspecto
5:4
Área activa
14.8" x 11.9" / 376mm x 301mm
Resolución
1280 x 1024
Otras resoluciones disponibles
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzÁngulo de visión
Horizontal: ±85° o 170° total / Vertical: ±85° o 170° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsTiempo total de respuesta (tipico)
25 msec
Radio de contraste
700:1
Interface táctile
Serial: E974307
USB: E776519, E960780Pantalla en pantalla (OSD)
Digital
Locking OSD and/or powerControles de usuario
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseConector de entrada de audio
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksAltavoces
Two built-in, rear-facing 2W speakers in display head
Formato de entrada de video
Digital Video Input (DVI-D), Analog, S-Video, NTSC/PAL
Entrada del conector para video señal
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesEntrada de video frecuencia
Separate H & V, composite sync, sync-on-green
Consumo de energía (típico)
40 W
Fuente de alimentación
Internal, with jack to accept power from optional external brick
Voltaje de entrada
85-265 V, 50-60 Hz and/or 12VDC @ 3.75A (max)
Conector de entrada de audio
Inlets IEC60320-1C6 for AC and 5.5 mm external
2.5 mm internal coaxial for DC
Cords NEMA 15-3 and CEE 7 SchukoFrecuencia de entrada
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Dimensiones del monitor (con soporte)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Peso sin empaque
21.5 lbs / 9.78 kg
Peso con empaque
30.0 lbs / 13.6 kg
Temperatura de operación
0°C to 40°C
Temperatura de almacenamiento
-20°C to 60°C
Humedad
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Opciones de montaje
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlGarantía
3 años
Vida de la lámpara de contraluz
50,000 hours
Aprobaciones y declaraciones reglamentarias
UL, cUL, TmÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B, CB Report, Certificate, MPRII, Section 508
Cable de energía AC
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
A replacement North American AC power cable, Elo p/n: C45467-000, is available at additional cost.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E042259
Europe: Elo p/n: E690013
United Kingdom: Elo p/n: E235317Caja de fuente de energía opcional
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E034907, is available at additional cost
Pluma Stylus IntelliTouch Opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
Cables táctiles/de video
Detachable touch and video cables are included. A replacement DVI-I Analog video cable, part number E38043-000, is available at additional cost.
Periféricos opcionales
Lector de banda magnética (MSR) - Elo P/N: E039290
Banco de alimentación para América del Norte - Elo P/N: E348315
Banco de alimentación para Europa - Elo P/N: E162361
Banco de alimentación para Reino Unido - Elo P/N: E334749
Banco de alimentación para China - Elo P/N: E834397
Banco de alimentación para Taiwán - Elo P/N: E953228
Banco de alimentación para Corea - Elo P/N: E986605
Banco de alimentación para Japón - Elo P/N: E033396
Banco de alimentación para Argentina - Elo P/N: E707702
