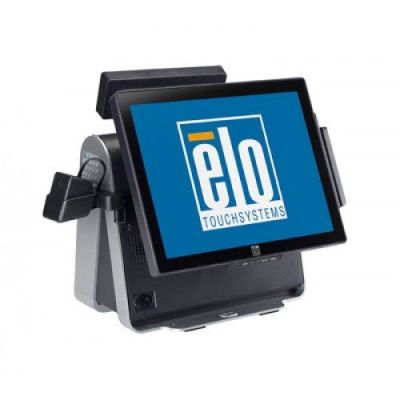

17D1 17" Touchcomputer (Discontinued August 2012)
Cómo comprar

Overview

The 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 17D Series expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.

Features
  • "Designed for touch" from the ground-up; stable stand and tiltable display - Elo quality and reliability
  • Available with Zero-Bezel Acoustic Pulse Recognition, True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit your application requirements
  • Touchscreen sealed from the factory - Eliminate accidental damage when liquids are spilled
  • Long-lasting product design - Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts, and even when future spares are needed
  • Bright high contrast - Improved screen readability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display's controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, hard drive and power supply - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Eliminate accidental disconnection and give a clean, professional look
  • 5 serial (2 of which are powered, 5V default/12V switchable), 7 USB 2.0, Ethernet 100/10 Base-T, Cash drawer port, 2 PS/2, Audio (1 line-in, 1 line-out, 1 mic-in), 24V printer power connector, parallel port - Accessible POS/POI-focused input/output ports make installation of peripherals easy
  • Clips on the back of the unit - Allow users to display customer-facing messages or advertising
  • 3-year warranty - Customer satisfaction and peace of mind

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (Antiglare, Worldwide) - E107932
    AccuTouch (Antiglare, Worldwide) - E178811
    AccuTouch (Antiglare, Worldwide) - E942332
    AccuTouch (Antiglare, Worldwide) - E848814
    AccuTouch (Antiglare, Worldwide) - E181180
    AccuTouch (Antiglare, Worldwide) - E699044
    IntelliTouch (Antiglare, Worldwide) - E680924
    IntelliTouch (Antiglare, Worldwide) - E451690
    IntelliTouch (Antiglare, Worldwide) - E875048
    IntelliTouch (Antiglare, Worldwide) - E831493
    IntelliTouch (Antiglare, Worldwide) - E470276
    IntelliTouch (Antiglare, Worldwide) - E542060
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E747957
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E187833
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E726010
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E520140
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E995346
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E031317

    Color del empaque

    Gris oscuro

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
    Reconocimiento Acústico de Pulso - Solo Toque

    Procesador

    Intel Dual-Core Celeron E1500 2.2GHz 512K L2 Cache 800MHz FSB LGA775 Pkg

    BIOS

    AMI

    Memoria (RAM)

    1GB DDR2 DIMM on 1 of 2 slots (Expandable to 4GB max on 2 slots)

    Drive para el disco duro

    160GB 2.5” 160GB SATA HDD
    Optional 2nd 160GB hard drive available

    Chipset

    Intel G31/ICH7

    Tamaño de la diagonal

    17'' diagonal, matriz activa TFT LCD (LED)

    Botones de control

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Relación de aspecto

    5:4

    Área activa

    13.3" x 10.6" / 338 mm x 270 mm

    Resolución

    1280 x 1024 @ 60Hz

    Cantidad de colores

    16.7 millones

    Brillo (tipico)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    Acoustic Pulse Recognition: 270 nits
    IntelliTouch: 270 nits

    Tiempo total de respuesta (tipico)

    5 msec

    Radio de contraste

    1000:1

    Ángulo de visión

    Horizontal: ±80° o 160° total / Vertical: ±80° o 160° total

    Puertos de E/S

    2 x PS/2 (1 Keyboard and 1 Mouse)

    Puertos USB

    7 x USB2.0 ports
    Additional internal ports available for optional Elo peripherals.

    Puerto seriales

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Puerto Ethernet

    1 x LAN RJ45 (Gigabit)

    Sin cableado / wireless

    Optional USB wireless kit available (802.11b/g/n)

    Puerto para cajón/caja de dinero

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models:
    -MultiPRO 320 with CD-005A cable
    -MultiPRO 420 with CD-039A cable

    Puertos de audio

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Altavoces

    Two 2W internal speakers

    sistema operativo

    Sin sistema operativo
    Windows Embedded for Point of Service (WEPOS)
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Lenguajes/Idiomas

    Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas
    WEPOS - 32 language groups
    Windows POSReady 2009 – 32 Language groups

    Fuente de alimentación

    Internal PSU (270W)

    Voltaje de entrada

    AC: 100-240 VAC 47-63 Hz

    Consumo de energía (típico)

    Without Peripherals: 130W
    With All Peripherals Connected: 213W

    Dimensiones de la computadora táctil Max incluyendo el stand

    15.0" x 8.4" x 11.3" / 381 mm x 212 mm x 288 mm

    Dimensiones de la caja de envio

    17.72" x 13.39" x 18.7" / 450 mm x 340 mm x 475 mm

    Peso sin empaque

    26 lbs / 11.79 kg

    Peso con empaque

    30.7 lbs / 13.93 kg

    Temperatura de operación

    0°C to 35°C / 32°F to 95°F

    Temperatura de almacenamiento

    -20°C to 60°C / -4°F to 140°F

    Humedad

    Operating: 20% - 80%
    Storage: 5% - 95%

    Aprobaciones y declaraciones reglamentarias

    UL/cUL, CB, CE, BSMI, NOM, AR S-Mark, CCC, EK, FCC, KCC, GOST-R, RCM, C-Tick, VCCI

    Reloj en tiempo real

    Batería de iones de litio

    MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

    50.000 horas demostradas

    Opciones de montaje

    Ability to secure base to tabletop or desktop; tiltable stand

    Garantía

    3 años

    Capacidad de sellado

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch, APR)
    Touchscreen sealed to LCD (all)

    Cables de energía

    North American and European power cables included

    Otras características

    Serviceable internal components
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Opciones de mejoría

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    Opciones de expansión

    Optional USB wireless kit available (802.11b/g/n)
    Printer power cable
    24V Powered USB Cable/Adapter
    Second 160GB Hard Disk Drive (HDD)
    Solid State Drive (SSD)
    2nd HHD/SSD Mounting Kit Only
    1GB Low-Profile DDR2 Memory DIMM Kit
    2GB Low-Profile

    Cables de energía AC de tipo E-Series ordenando información

    América del Norte P/N: E042259

    Pluma Stylus IntelliTouch Opcional

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.

    Optional Accessories/Peripherals

    Single-line barcode scanner
    Omni-directional barcode scanner
    Optional USB wireless kit available (802.11b/g/n)
    Printer power cable
    24V Powered USB Cable/Adapter
    Second 160GB Hard Disk Drive (HDD)
    64GB Solid State Drive (SSD)
    2nd HHD/SSD Mounting Kit Only
    1GB Low-Profile DDR2 Memory DIMM Kit
    2GB Low-Profile DDR2 Memory DIMM Kit
    Magnetic Stripe Reader - Elo P/N: E145919
    Rear-Facing Customer Display (2x20 VFD) - Elo P/N: E632206
    Biometric Fingerprint Reader (FPR) - Elo P/N: E373639
