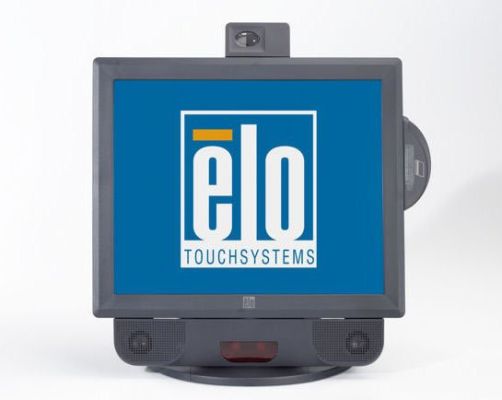

17A2 17" Touchcomputer (Discontinued April 2010)
Cómo comprar

Overview

Expanded versatility, bigger screen, and improved serviceability, all in a compact design: the 17A2 17" LCD all-in-one touchcomputer provides an attractive ultra-compact 17" touch solution that can fit virtually anywhere in any point-of-service environment.

The 17A2 touchcomputer with dual video display capability includes a choice of touch technologies: AccuTouch® five-wire resistive, IntelliTouch® surface acoustic wave and the company's innovative Acoustic Pulse Recognition (APR) that blends the benefits of all three. Elo touch technologies provide stable, durable touch options that are resistant to scratches and liquids and can be activated in a variety of ways. Also, the 17A2 comes with 1280 x 1024 SXGA resolution and 5:4 aspect ratio to display clear, precise graphics for improved readability.

The space-saving, compact design of the 17A2 touchcomputer offers increased flexibility for easy integration of a variety of optional field-replaceable peripherals, including: three-track magnetic stripe reader (MSR) for credit, ID and loyalty card transactions; customer-facing display to verify those transactions; biometric fingerprint recognition for increased security; 3-watt speaker bar with or without optional single line or omni-directional barcode scanner; and DVD drive. Serviceability is enhanced with easy access to the hard drive and compact flash through a slide-out drawer.

The silent, fanless, spill- and tamper-resistant design of the 17A2 and its compact integrated peripherals, make this touchcomputer an ideal choice for point-of-sale, point-of-service, loyalty systems, kiosk information systems, medical and light industrial, airport security, home control, and Internet access points.

Features
  • Small integrated, all-in-one touchcomputer - Saves space, with the same footprint as a standard 17" LCD display, Combining processing with touchscreen to fit virtually anywhere
  • Silent, fanless Intel® Celeron® M design - Can be installed and functional in any point-of-service environment, Reliable operation in demanding environments, 2X performance improvement over 1529L based on Passmark Benchmark
  • Available with AccuTouch five-wire resistive, IntelliTouch surface-wave, or Acoustic Pulse Recognition touch technology - Choice of touch technology to fit a wide range of applications, Touchscreen sealed from the factory
  • Resists dirt, dust and liquid intrusion - "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting, Flexible VESA mounting options–configurable as a desktop or wall-mount, Mounting options to complement store layout and customer traffic
  • USB 2.0, serial and cash drawer connectivity - Flexibility to support both legacy and future POS peripherals
  • Dual video display capability - Allows attachment of a second touch screen display for digital signage, Scalar support for 800X600, 1024X768 and native 1280X1024 for running legacy applications
  • Microsoft® Windows® XP Professional, WEPOS or XP Embedded operating system support - Increases software and peripheral choices offering versatility and compatibility
  • On-screen display controls located on the side rather than the front, plus lockout function - Minimizes accidental or intentional changes to the display's controls in a public access environment
  • Securable cable cover - Cable management system conceals cables from view providing additional security from tampering, Robust tie-downs for strain relief
  • Security lock receptacle - Provides fast, effective, and convenient security in any public and/or point-of-service installation
  • User accessible hard drive mounted in slide-out drawer - Easy access and quick upgrades or repairs, lockable with one screw
  • Long product life-cycle - Peace of mind that Elo touchcomputers will be available throughout all phases of project rollouts and when future spares are needed

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (Antiglare) - E094342
    AccuTouch (Antiglare) - E580906
    IntelliTouch (Antiglare) - E144637
    IntelliTouch (Antiglare) - E692528

    Color del empaque

    Gris oscuro

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple

    Procesador

    Intel Celeron M 1GHz CPU

    BIOS

    ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL

    Memoria (RAM)

    1 GB DDR2 standard on 1 of 2 slots
    Expandable to 2 GB max

    Drive para el disco duro

    1 x 2.5" 160 GB SATA hard drive

    Chipset

    Intel 915GME/ICH6

    Tamaño de la diagonal

    17'' diagonal, matriz activa TFT LCD (LED)

    Pantalla en pantalla (OSD)

    Controls (side): menu, up, down, select, power
    Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
    Languages: English, French, Italian, German, Spanish
    Lockouts: all controls

    Relación de aspecto

    5:4

    Resolución

    1280 x 1024 at 60 Hz (native)
    scalar support for 1024 x 768 or 800 x 600 at 60 Hz

    Cantidad de colores

    16.7 millones

    Brillo (tipico)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    IntelliTouch: 276 nits

    Tiempo total de respuesta (tipico)

    7.2 msec

    Radio de contraste

    800:1

    Ángulo de visión

    Horizontal: ±80° o 160° total / Vertical: ±80° o 160° total

    Puertos de E/S

    1 x PS/2 universal (default to keyboard compatibility)

    Puertos USB

    4 x USB self powered 2.0
    1 (of 4) port is 12V powered USB (1.5A) for POS peripherals

    Puerto seriales

    2 x RS-232 serial (RJ45, 8 position)
    COM2 is RS-232, RS-422 and RS-485 selectable

    Puerto Ethernet

    1 x LAN RJ45

    Puerto para cajón/caja de dinero

    1 x cash drawer (RJ11, 6 position)

    Salida de video adicional

    Intel GMA 900 up to 128MB shared

    Puertos de audio

    1 x 3.5 mm audio-out
    1 x 3.5 mm mic-in

    sistema operativo

    Sin sistema operativo
    Windows Embedded for Point of Service (WEPOS)
    Windows XP Professional 3

    Lenguajes/Idiomas

    Windows XP – 24 Language groups; WEPOS - 5 language groups

    Fuente de alimentación

    External DC (power brick)

    Voltaje de entrada

    DC: 12 V at 10.0 amps max.

    Consumo de energía (típico)

    Touchcomputer: 85 W max.
    Serial VFD customer display: 5 W max.
    USB fingerprint reader: 3 W max.
    USB magnetic stripe reader: 1 W max.
    USB scanner: 3 W max.
    Speaker bar: 7 W max.
    DVD drive: 5 W max.
    Wireless card/TV tuner: 5 W max.
    Total power drawn with all possible peripherals: 105 W max.

    Dimensiones de la computadora táctil Max sin el stand

    15.4" x 15.0" x 9.4" / 391 mm x 381 mm x 239 mm

    Dimensiones de la caja de envio

    Base unit: 17.9" x 20.1" x 9.6" / 455 mm x 510 mm x 245 mm
    Unit with peripherals: 20.5" x 20.1" x 9.6" / 520 mm x 510 mm x 245 mm

    Peso (sin soporte)

    14.9 lbs / 6.8 kg

    Peso sin empaque

    24.0 lbs / 10.9 kg

    Peso con empaque

    32.0 lbs / 14.5 kg

    Temperatura de operación

    0°C to 35°C / 32°F to 95°F

    Temperatura de almacenamiento

    -20°C to 60°C / -4°F to 140°F

    Humedad

    Operating: 20%-80%
    Storage: 5%-95%

    Aprobaciones y declaraciones reglamentarias

    UL/cUL (recognized component), FCC, CE, VCCI, C-Tick, EN60950

    Reloj en tiempo real

    Batería de iones de litio

    MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

    50.000 horas demostradas

    Opciones de montaje

    100 mm VESA mount
    Threaded holes on bottom of stand for secure mounting

    Garantía

    3 años

    Cables de energía

    A North American power cable and a European power cable are included. For touchcomputers being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317.

    Otras características

    Accessible hard disk drive, compact flash, miniPCI card

    Opciones de mejoría

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    Fuente de alimentación de reemplazo de CC

    12V DC power brick, part number E114692, is available at additional cost.

    Pluma Stylus IntelliTouch Opcional

    D82064-000, available at additional cost.
