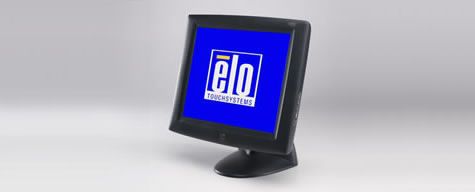

1725L 17" Touchscreen Monitor (Discontinued November 2006)
Cómo comprar

Overview

The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal. The optional, integrated three-stripe, ergonomically-placed magnetic stripe reader (MSR) is incorporated into the monitor housing and is positioned ergonomically on the top, right corner so that the user can swipe the card flat with a natural action. The MSR also reads the third data stripe, normally reserved for applications such as customer loyalty programs. The USB version has an internal USB hub so that a single USB connection/cable carries both the touch interface signal and the MSR data. Available with a choice of touch technologies, the 1725L is targeted toward applications that require the use of credit/debit cards, loyalty cards, and other card transactions.

Other features.
  • High quality panel with 140°x127° viewing angle
  • Analog and digital (DVI-D) video inputs
  • "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
  • Cables hidden from user's view
  • Mounting holes on base bottom for tabletop security
  • Base removable or reversible for wall mounting, plus VESA mounting option
  • Built-in speakers located in display head
  • Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology
  • Dual serial/USB interface for non-MSR version
  • Ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version.
  • Magnetic Stripe Reader cable is internal for USB versions and external for serial versions
  • Unique USB hub inside the monitor allows a single USB cable to carry both the touch signal and MSR data. The serial version has two cables/external connectors to carry the touch and MSR data.
  • Sealed touchscreen
  • Controls on the side rather than the front, plus lockout function for public use
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Long-lasting product cycle
  • Worldwide agency approvals

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (Antiglare, Worldwide) - 069914-001
    AccuTouch (Antiglare, Worldwide) - E76025-001
    AccuTouch (Antiglare, Worldwide) - E87300-001
    AccuTouch (Antiglare, Worldwide) - E43463-001
    IntelliTouch (Antiglare, Worldwide) - D14995-001
    IntelliTouch (Antiglare, Worldwide) - F37082-001
    IntelliTouch (Antiglare, Worldwide) - D66140-001
    Surface Capacitive (Antiglare, Worldwide) - F80972-000

    Color del empaque

    Gris oscuro

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
    Surface Capacitive (SCAP) - Single Touch

    Tamaño de la diagonal

    17'' diagonal, matriz activa TFT LCD (LED)

    Relación de aspecto

    5:4

    Área activa

    13.3" x 10.6" / 338mm x 270mm

    Resolución

    1280 x 1024

    Otras resoluciones disponibles

    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Ángulo de visión

    Horizontal: ±70° or 140° total / Vertical:67/63° or 130° total

    Cantidad de colores

    16.2 million with dithering (6 bit)

    Brillo (tipico)

    LCD panel: 260 nits
    AccuTouch: 213 nits
    IntelliTouch: 239 nits
    surface capacitive: 218 nits

    Tiempo total de respuesta (tipico)

    25 msec

    Radio de contraste

    450:1

    Formato de entrada de video

    Analog (no proprietary video card needed); Digital Video Input (DVI-D)

    Entrada del conector para video señal

    Mini D-Sub 15-Pin; DVI-D

    Interface táctile

    Dual serial/USB: F80972-000, 069914-001
    Serial: E76025-001, D14995-001
    USB: E87300-001, E43463-001, F37082-001, D66140-001

    Fuente de alimentación

    External power supply, 100-240 VAC, 50-60 Hz

    Voltaje de entrada

    11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.

    Frecuencia de entrada

    Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

    Sync Types

    Separate horizontal and vertical sync, composite sync and sync-on-green

    Consumo de energía (típico)

    50 W max.

    Altavoces

    Two watt/channel speakers located in display head

    Pantalla en pantalla (OSD)

    OSD lockouts for power and user controls
    OSD extras include volume, treble, bass, balance

    Controles de usuario

    Side: menu, up, down, select, power
    OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, input select (analog or digital)
    Llanguages: English, German, Spanish, Japanese, French
    OSD disable/enable: power, volume, and/or OSD menu

    Peso sin empaque

    22.2 lbs / 10.0 kg

    Peso con empaque

    30.8 lbs / 14.0 kg

    Temperatura de operación

    0°C to 40°C

    Temperatura de almacenamiento

    -20°C to 60°C

    Humedad

    Operating: 20%-80%; Storage: 10%-90%; noncondensing

    Capacidad de sellado

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    Opciones de montaje

    100 mm or 75 mm M4 VESA mount
    100 mm M5 threaded holes on base bottom for table top security
    Removable base
    Reversible stand for wall mounting
    Stand rotates from -5° (from vertical) to 90° (horizontal)
    Optional stability plate

    Vida de la lámpara de contraluz

    Typical 40,000 hours to half brightness

    Garantía

    3 años

    Aprobaciones y declaraciones reglamentarias

    UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II

    Cables de energía

    A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
    Elo p/n: 276875-000.

    Caja de fuente de energía opcional

    Elo p/n: E785134. Available at additional cost.

    Cables táctiles/de video

    Detachable touch and video cables are included.

    Stability Plate

    Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
