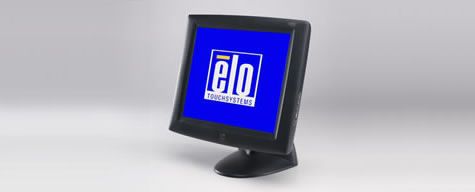

1725L 17" Touchscreen Monitor (Discontinued May 2006)
Overview
The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- High quality panel with 140°x140° viewing angle
- Analog and digital (DVI-D) video inputs
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology and dual serial/USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch (Antiglare, Worldwide) - 442072-001
Color del empaque
Gris oscuro
Tecnología y capacidad táctil
SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Tamaño de la diagonal
17'' diagonal, matriz activa TFT LCD (LED)
Relación de aspecto
5:4
Área activa
13.3" x 10.6" / 338mm x 270mm
Resolución
1280 x 1024
Otras resoluciones disponibles
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzÁngulo de visión
Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total
Cantidad de colores
16.2 million with dithering (6 bit)
Brillo (tipico)
LCD panel: 260 nits
IntelliTouch: 239 nitsTiempo total de respuesta (tipico)
25 msec
Radio de contraste
450:1
Formato de entrada de video
Analog (no proprietary video card needed); Digital Video Input (DVI-D)
Entrada del conector para video señal
Mini D-Sub 15-Pin; DVI-D
Fuente de alimentación
External power supply, 100-240 VAC, 50-60 Hz
Voltaje de entrada
11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.
Frecuencia de entrada
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Sync Types
Separate horizontal and vertical sync, composite sync and sync-on-green
Consumo de energía (típico)
50 W max.
Altavoces
Two watt/channel speakers located in display head
Pantalla en pantalla (OSD)
OSD lockouts for power and user controls
OSD extras include volume, treble, bass, balanceControles de usuario
Side: menu, up, down, select, power
OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, nput select (analog or digital)
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuDimensiones del monitor (con soporte)
17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm
Peso (con soporte)
15.08 lb / 6.84 kg
Peso sin empaque
20.92 lbs / 9.49 kg
Peso con empaque
27.42 lbs / 12.44 kg
Temperatura de operación
0°C to 40°C
Temperatura de almacenamiento
-20°C to 60°C
Humedad
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Opciones de montaje
100 mm or 75 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Optional stability plateVida de la lámpara de contraluz
Typical 40,000 hours to half brightness
Garantía
3 años
Aprobaciones y declaraciones reglamentarias
UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II
Cables de energía
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
Elo p/n: 276875-000.Caja de fuente de energía opcional
Elo p/n: E785134. Available at additional cost.
Cables táctiles/de video
Detachable touch and video cables are included.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
