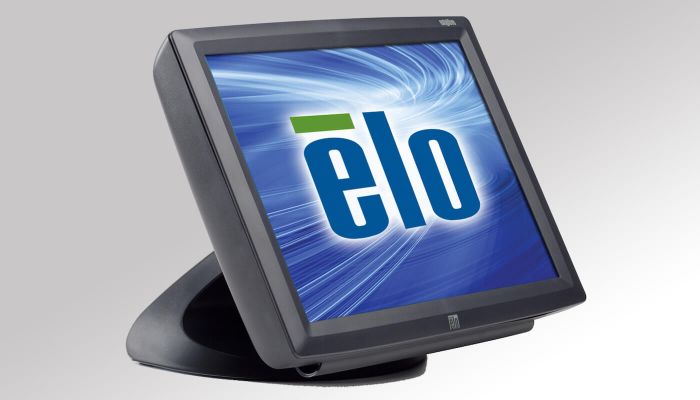

1529L 15" Touchscreen Monitor (Discontinued December 2013)

Presupuesto

• Técnico

  ---

  Número(s) de Parte(s)

  AccuTouch - E582772
  AccuTouch - E785333
  AccuTouch - E619005
  AccuTouch - E587776
  AccuTouch - E659634
  IntelliTouch - E101984
  IntelliTouch - E641269
  IntelliTouch - E926109
  IntelliTouch - E229149
  IntelliTouch - E273617
  IntelliTouch - E733714

  Color del empaque

  Dark Gray or Beige

  Tecnología y capacidad táctil

  Resistiva de 5 hilos (AccuTouch®) - Táctil simple
  SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple

  Tamaño de la diagonal

  15'' diagonal, matriz activa TFT LCD (LED)

  Relación de aspecto

  4:3

  Área activa

  12.0" x 9.0" / 304mm x 228mm

  Resolución

  1024 x 768 at 60 Hz

  Otras resoluciones disponibles

  1024 x 768 at 60, 65, 70 or 75 Hz
  832 x 624 at 75 Hz
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  720 x 350 at 70 Hz
  640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

  Cantidad de colores

  16.2 millones

  Brillo (tipico)

  LCD panel: 350 nits
  AccuTouch: 280 nits
  IntelliTouch: 315 nits

  Tiempo total de respuesta (tipico)

  8 msec

  Radio de contraste

  500:1

  Interface táctile

  Serial/USB: E582772, E785333, E619005, E587776, E101984, E641269, E926109, E229149
  USB: E659634, E273617, E733714

  Pantalla en pantalla (OSD)

  Controls (side): menu, up, down, select, power
  Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
  Languages: English, French, German, Spanish, Japanese
  Lockouts: power, user controls

  Altavoces

  Two watt/channel speakers located in display head

  Formato de entrada de video

  Analog VGA, DVI-D

  Entrada del conector para video señal

  Mini D-Sub 15-Pin VGA type, DVI-D connector

  Consumo de energía (típico)

  Monitor: 20 W
  USB magnetic stripe reader: 0.5 W
  2 USB external ports power when loaded: 5 W
  Total with all possible accessories: 31 W

  Fuente de alimentación

  Internal AC, Optional external DC (power brick)

  Voltaje de entrada

  AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

  Conector de entrada de audio

  AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  Frecuencia de entrada

  Horizontal: 31-60 kHz / Vertical: 56-75 Hz

  Dimensiones del monitor (con soporte)

  14.0" x 10.4" x 11.3" / 355mm x 265mm x 286mm

  Dimensiones de la caja de envio

  Tall stand: 21.65" x 11.02" x 19.69" / 550mm x 280mm x 500mm
  Short stand with scanner: 21.65" x 16.73" x 13.58" / 550mm x 425mm x 345mm
  Short stand: 19.09" x 16.73" x 13.00" / 485mm x 425mm x 330mm

  Peso (con soporte)

  Short stand: 14.4 lbs / 6.6 kg

  Peso (sin soporte)

  10.6 lbs / 4.8 kg

  Peso de envío (con soporte)

  Short stand: 21.2 lbs / 9.6 kg

  Temperatura de operación

  0°C to 40°C / 32°F to 104°F

  Temperatura de almacenamiento

  -20°C to 60°C / -4°F to 140°F

  Humedad

  Operating: 20-80%
  Storage: 5-95%
  noncondensing

  Capacidad de sellado

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

  50.000 horas demostradas

  Opciones de Soporte

  Tilt, removable, reverse (wall mount), short or tall stand

  Opciones de montaje

  75mm VESA mount

  Otras características

  Energy save mode (less than 2 watts)
  2 stage DPMS
  VESA DDC Plug and Play
  Security lock receptacle
  Two external USB ports

  Garantía

  3 años

  Cable de energía AC

  North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying part number E540272.

  AC power cables for power brick are also available at additional cost:
  United States: Elo p/n - E042259
  Europe: Elo p/n - E690013
  United Kingdom: Elo p/n - E235317

  Caja de fuente de energía opcional

  The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E137360, is available at additional cost.

  Pluma Stylus IntelliTouch Opcional

  Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.

  Optional Acoustic Pulse Recognition (APR) Stylus Pen

  Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.

  Cables táctiles/de video

  All appropriate cables are included and are detachable.

  Soportes, monturas y kits

  Short Desktop stand (Dark gray) - Elo p/n: E252977
  Tall Desktop stand (Dark gray) - Elo p/n: E930466
  Short Desktop stand (Beige) - Elo p/n: E819036
  Tall Desktop stand (Beige) - Elo p/n: E024520
  1529L VESA Plate – Elo p/n: E295293
