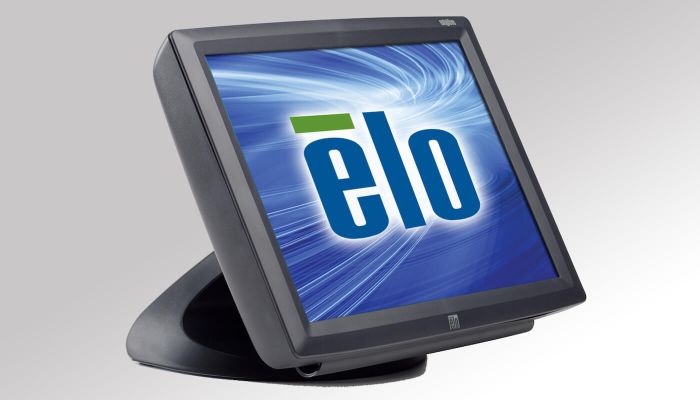

1529L 15" Touchscreen Monitor (Discontinued August 2011)

Presupuesto

• Técnico

  ---

  Número(s) de Parte(s)

  AccuTouch - E582772
  AccuTouch - E785333
  AccuTouch - E619005
  AccuTouch - E587776
  AccuTouch - E564135
  AccuTouch - E659634
  AccuTouch - E580588
  Acoustic Pulse - E700641
  Acoustic Pulse - E700641
  Acoustic Pulse - E680845
  Acoustic Pulse - E353946
  CarrollTouch - E392726
  IntelliTouch - E101984
  IntelliTouch - E641269
  IntelliTouch - E926109
  IntelliTouch - E229149
  IntelliTouch - E273617
  IntelliTouch - E733714
  IntelliTouch - E411937
  Surface capacitive - E633113

  Color del empaque

  Dark Gray or Beige

  Tecnología y capacidad táctil

  Resistiva de 5 hilos (AccuTouch®) - Táctil simple
  SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
  Reconocimiento Acústico de Pulso - Solo Toque
  Surface Capacitive (SCAP) - Single Touch
  CarrollTouch Infrared Technology

  Tamaño de la diagonal

  15'' diagonal, matriz activa TFT LCD (LED)

  Relación de aspecto

  4:3

  Área activa

  12.0" x 9.0" / 304mm x 228mm

  Resolución

  1024 x 768 at 60 Hz

  Otras resoluciones disponibles

  1024 x 768 at 60, 65, 70 or 75 Hz
  832 x 624 at 75 Hz
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  720 x 350 at 70 Hz
  640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

  Ángulo de visión

  Horizontal: ±70° o 140° total / Vertical: ±60° o 120° total

  Cantidad de colores

  16.2 millones

  Brillo (tipico)

  LCD panel: 350 nits
  AccuTouch: 280 nits
  Acoustic Pulse Recognition: 322 nits
  CarrollTouch: 322 nits
  IntelliTouch: 322 nits
  Surface capacitive: 298 nits

  Tiempo total de respuesta (tipico)

  12 msec

  Radio de contraste

  400:1

  Interface táctile

  USB: E700641, E564135, E659634, E273617, E733714, E580588, E411937, E700641, E680845, E353946
  Serial/USB: E582772, E785333, E619005, E587776, E392726, E101984, E641269, E926109, E229149, E633113

  Pantalla en pantalla (OSD)

  Controls (side): menu, up, down, select, power
  Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
  Languages: English, French, German, Spanish, Japanese
  Lockouts: power, user controls

  Altavoces

  Two watt/channel speakers located in display head

  Formato de entrada de video

  Analog VGA, DVI-D

  Entrada del conector para video señal

  Mini D-Sub 15-Pin VGA type, DVI-D connector

  Consumo de energía (típico)

  Monitor: 20 W
  USB magnetic stripe reader: 0.5 W
  2 USB external ports power when loaded: 5 W
  Total with all possible accessories: 31 W

  Fuente de alimentación

  Internal AC, Optional external DC (power brick)

  Voltaje de entrada

  AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

  Conector de entrada de audio

  AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  Frecuencia de entrada

  Horizontal: 31-60 kHz / Vertical: 56-75 Hz

  Dimensiones del monitor (con soporte)

  14.0" x 10.4" x 11.3" / 355mm x 265mm x 286mm

  Dimensiones de la caja de envio

  Tall stand: 21.65" x 11.02" x 19.69" / 550mm x 280mm x 500mm
  Short stand with scanner: 21.65" x 16.73" x 13.58" / 550mm x 425mm x 345mm
  Short stand: 19.09" x 16.73" x 13.00" / 485mm x 425mm x 330mm

  Peso (con soporte)

  Short stand: 14.4 lbs / 6.6 kg

  Peso (sin soporte)

  10.6 lbs / 4.8 kg

  Peso de envío (con soporte)

  Short stand: 21.2 lbs / 9.6 kg

  Temperatura de operación

  0°C to 40°C / 32°F to 104°F

  Temperatura de almacenamiento

  -20°C to 60°C / -4°F to 140°F

  Humedad

  Operating: 20-80%
  Storage: 5-95%
  noncondensing

  Capacidad de sellado

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

  50.000 horas demostradas

  Opciones de Soporte

  Tilt, removable, reverse (wall mount), short or tall stand

  Opciones de montaje

  75 mm VESA mount

  Otras características

  Energy save mode (less than 2 watts)
  2 stage DPMS
  VESA DDC Plug and Play
  Security lock receptacle
  2 external USB ports

  Garantía

  3 años

  Aprobaciones y declaraciones reglamentarias

  UL, cUL (*recognized component), FCC-A, Semko, CE, VCCI, C-Tick

  Cable de energía AC

  North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n - E540272.

  AC power cables for power brick are also available at additional cost:
  United States: Elo p/n - E042259
  Europe: Elo p/n - E690013
  United Kingdom: Elo p/n - E235317

  Caja de fuente de energía opcional

  The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n - E137360, is available at additional cost.

  Pluma Stylus IntelliTouch Opcional

  Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n - D82064-000, available at additional cost.

  Optional Acoustic Pulse Recognition (APR) Stylus Pen

  Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Elo p/n - E963860, available at additional cost.

  Cables táctiles/de video

  All appropriate cables are included and are detachable.

  Soportes, monturas y kits

  Short Desktop stand (Dark gray) - Elo p/n: E252977
  Tall Desktop stand (Dark gray) - Elo p/n: E930466
  Short Desktop stand (Beige) - Elo p/n: E819036
  Tall Desktop stand (Beige) - Elo p/n: E024520
  1529L VESA Plate – Elo p/n: E295293
