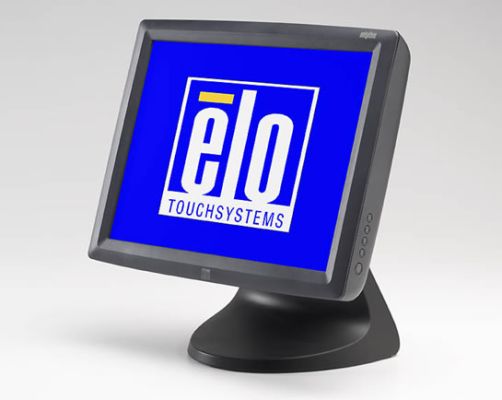

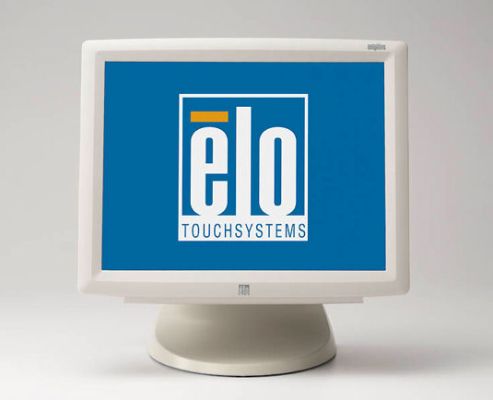

1528L 15" Touchscreen Monitor (Discontinued March 2015)
Overview
The 1528L 15" LCD medical desktop touchmonitor is an integrated solution for medical equipment OEMs and healthcare system integrators seeking a reliable, durable and cost-effective touchmonitor. Typical applications include patient self-service, nurse station and medical OEMs. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchmonitor’s innovative IPX1 enclosure design, coupled with the addition of a special gasket, sheds water and resists liquid drops and spills.
The 1528L is available with IntelliTouch surface wave touch technology or AccuTouch five-wire resistive touch technology. AccuTouch is the most widely used technology for medical equipment applications. AccuTouch touchscreens can be activated with a gloved hand or any stylus – an important feature for medical applications.
Other features.
- IPX1 drip-proof enclosure
- Long lasting product cycle–enclosure controlled by Elo specifications
- Touch can be activated with gloved hands
- Touchscreen sealed from the factory to resist against dirt and dust
- Analog and digital (DVI-D) video inputs
- Multiple mounting options including VESA mounting option
- On screen display controls on the side rather than the front, plus lockout function for public use
- Built in speakers located in the display head
- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface-Wave Technology
- Combination controller (both Serial and USB)
Presupuesto
-
Técnico
Número(s) de Parte(s)
AccuTouch (Antiglare) - E606958 (Americas, EMEA)
AccuTouch (Antiglare) - E338457 (Americas, EMEA)
IntelliTouch (Antiglare) - E491199 (Americas)
IntelliTouch (Antiglare) - E372869 (Americas)Color del empaque
Dark Gray or Beige
Tecnología y capacidad táctil
Resistiva de 5 hilos (AccuTouch®) - Táctil simple
SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simpleTamaño de la diagonal
15'' diagonal, matriz activa TFT LCD (LED)
Relación de aspecto
4:3
Área activa
12.0" x 9.0" / 304mm x 228mm
Resolución
1024 x 768 at 60 Hz
Otras resoluciones disponibles
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 HzÁngulo de visión
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
Cantidad de colores
16.2 millones
Brillo (tipico)
LCD panel: 350 nits
AccuTouch: 287 nits
IntelliTouch: 322 nitsTiempo total de respuesta (tipico)
8 msec
Radio de contraste
400:1
Interface táctile
Dual serial/USB
Pantalla en pantalla (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast , brightness, V-position, H-position, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsAltavoces
Two watt/channel speakers located in display head
Formato de entrada de video

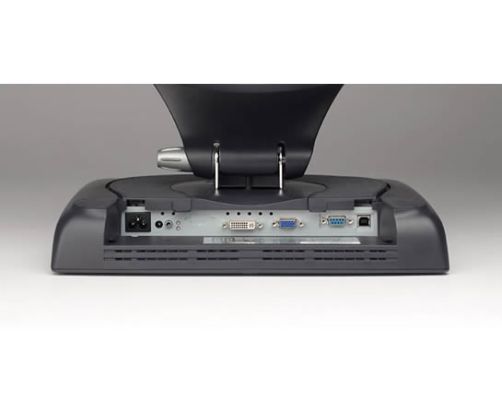

Analog VGA, DVI-D
Entrada del conector para video señal
Mini D-Sub 15-Pin VGA type, DVI-D connector
Consumo de energía (típico)
48W
Fuente de alimentación
External DC (power brick); Hospital-grade power cord for US/Canada; European power cord.
Voltaje de entrada
AC: 100–240 VAC, 50/60 Hz; DC: 12.0 V±0.75 V
Conector de entrada de audio
AC: IEC 60320 C6 / DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)
Frecuencia de entrada
Horizontal: 31–60 kHz / Vertical: 56–75 Hz
Dimensiones del monitor (con soporte)
14.0" x 13.8" x 8.0" / 355mm x 350mm x 203mm
Dimensiones de la caja de envio
18.50" x 10.43" x 18.11" / 470mm x 265mm x 460mm
Peso (sin soporte)
10.8 lbs / 4.8 kg
Peso sin empaque
With power adapter: 16.1 lbs / 8.3 kg; Without power adapter: 15.3 lbs / 6.9 kg
Peso con empaque
22.2 lbs / 10.1 kg
Temperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
-20°C to 60°C / -4°F to 140°F
Humedad
Operating: 20%-80%
Storage: 5%-95%
noncondensingCapacidad de sellado
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Opciones de Soporte
Tilt, remove
Opciones de montaje
75 mm VESA mount
Otras características
Energy save mode (less than 6 watts)
2 stage DPMS
VESA DDC, Plug & Play
Security lock receptacleGarantía
3 años
Aprobaciones y declaraciones reglamentarias
FCC, IC, C-Tick Class B, UL, cUL Medical UL 60601-1(formerly 2601-1), C22.2 No. 601.1 (Drip-proof IPX1, AccuTouch only). Includes EMC requirements EN, IEC 60601-1-2
Cable de energía AC
AC power cables for power brick are also available at additional cost:
United States - Elo p/n: E450339
Europe - Elo p/n: E690013
United Kingdom - Elo p/n: E235317Caja de fuente de energía opcional
Replacement Medical Grade Power Supply Brick and Cable Elo p/n: E539821, available at additional cost.
Pluma Stylus IntelliTouch Opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.
Cables táctiles/de video
Detachable touch and video cables are included.
