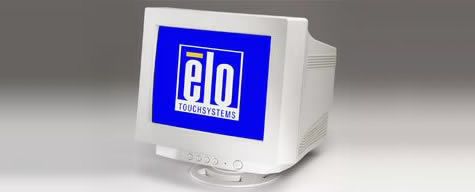

1525C 15" CRT Touchmonitor (Discontinued November 2006)
Overview
For delivering the best possible optics on a touch CRT, there is nothing better than the unique Elo IntelliTouch ZB touch-on-tube technology. No overlay means 100% of the brightness, picture quality, and color purity are preserved, with up to 80% less reflection than the competition. The touch is super sensitive, drift free and extremely precise as you are touching even closer to the image. If you want a touch CRT, you need to look no further.
Features
- Our lowest cost touchmonitor
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original picture quality
- Digital on-screen display (OSD) with lockout function for public use
- Power Save function
- Rigid (removable) base
- Innovative touchscreen sealing
- Worldwide agency approvals
Presupuesto
-
Técnico
Número(s) de Parte(s)
IntelliTouch ZB (Antireflective, Worldwide) - 396036-001
Color del empaque
Negro
Tecnología y capacidad táctil
SAW Sin bisel (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Tamaño de la diagonal
15'' diagonal, matriz activa TFT LCD (LED)
Grosor del monitor
15.2" / 385 mm
Relación de aspecto
4:3
Área activa
10.2" x 7.7" / 260 mm x 195 mm
Resolución
800 x 600 at 85 Hz
Otras resoluciones disponibles
1024 x 768 at 60, 70, 75, or 85 Hz
800 x 600 at 60, 72, 75, or 85 Hz
640 x 480 at 60, 72, 75, or 85 HzCantidad de colores
16.7 millones
Dot Pitch
0.28 mm
Radio de contraste
300:1
Interface táctile
Dual serial/USB
Pantalla en pantalla (OSD)
Digital OSD with lockout capability
Video Bandwidth
67 MHz
Formato de entrada de video
Analog (no proprietary video card needed)
Entrada del conector para video señal
Mini D-Sub 15-Pin (female)
Consumo de energía (típico)
70 W max.
Fuente de alimentación
90-264 VAC, 50-60 Hz
Frecuencia de entrada
Horizontal: 30-70 kHz Vertical: 50-160 Hz
Dimensiones del monitor (sin soporte)
14.3" x 12.9" x 15.2" / 362 mm x 328 mm x 385 mm
Peso sin empaque
29 lbs / 13.0 kg
Peso con empaque
33 lbs / 15.0 kg
Temperatura de operación
0°C to 40°C
Temperatura de almacenamiento
-40°C to 60°C
Humedad
Operating: 10% to 90%
Storage: 10% to 90%
noncondensingMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Opciones de montaje
Rigid (removable) base
Otras características
VESA DDC 1/2 B Plug and Play
Garantía
2 años
Aprobaciones y declaraciones reglamentarias
UL, cUL, FCC, CE, CISPR22 Class B, TÜV-GS, MPR II (ITE per IEC/EN 60950)
Cables de energía
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000.
