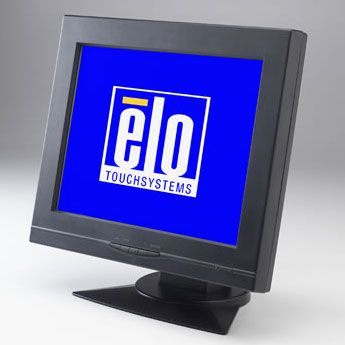

1524L 15" Touchscreen Monitor (Discontinued November 2004)
Overview
The 1524L touchmonitors are designed to provide a single-source selection of entry-level LCD monitors, aimed at the fast-changing consumer retail/POS and hospitality/POS markets. While offered at a lower price-point, they still provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems. The 1524L features Elo AccuTouch® five-wire resistive touch technology.
Other features.
- Economical and reliable
- Up to 1024 x 768 resolution at 75 Hz
- AccuTouch Five-Wire Resistive Technology with serial interface
- Touch can be activated with fingernails, gloves, credit cards, or any stylus
- Sealed touchscreen
- Removable base and VESA mounting option
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
Presupuesto
-
Técnico
Número(s) de Parte(s)
AccuTouch (Serial, Antiglare, Worldwide) - D20932-000
Color del empaque
Gris oscuro
Tecnología y capacidad táctil
Resistiva de 5 hilos (AccuTouch®) - Táctil simple
Tamaño de la diagonal
15'' diagonal, matriz activa TFT LCD (LED)
Relación de aspecto
4:3
Área activa
12.0" x 9.0" / 304mm x 228mm
Resolución
1024 x 768 at 75 Hz
Otras resoluciones disponibles
1024 x 768 at 60, 66 Hz (Sun), 70, or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72, or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72, or 75 HzÁngulo de visión
Horizontal: ±60° or 120° total / Vertical: 45°/55° or 100° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 250 nits
AccuTouch: 205 nits (typical)Tiempo total de respuesta (tipico)
40 msec
Radio de contraste
350:1
Formato de entrada de video
RGB analog
Entrada del conector para video señal
Mini D-Sub 15-Pin VGA type
Interface táctile
Serial: D20932-000
Fuente de alimentación
Type: Internal
Voltaje de entrada
100-240 VAC, 50-60 Hz
Frecuencia de entrada
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Pantalla en pantalla (OSD)
Multilingual OSD with lock-out capability
Controles de usuario
Controls (side): auto, enter, -, +, menu/exit
OSD: brightness, contrast, phase auto adjust, H-position, V-position, clock, YUV (saturation, hue and flesh tones), RGB (red, green and blue color temperatures), information OSD H-position, OSD V-position, OSD time, recall defaults, exit
Languages: English, French, Japanese, Deutsch, and SpanishDimensiones del monitor (con soporte)
15.0" x 14.5" x 7.6" / 381mm x 370mm x 194mm
Peso sin empaque
12.0 lbs / 5.4 kg
Peso con empaque
16.5 lbs / 7.5 kg
Temperatura de operación
0°C to 40°C
Temperatura de almacenamiento
-20°C to 60°C
Humedad
Operating: 20%-80%
Storage: 10%-90%
noncondensingOpciones de montaje
Removable base
75 mm VESA mountVida de la lámpara de contraluz
Min 50,000 hours to half brightness
Aprobaciones y declaraciones reglamentarias
UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick, MPR II
Cables de energía
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo P/N: 276875-000.Cables táctiles/de video
Detachable touch and video cables are included.
