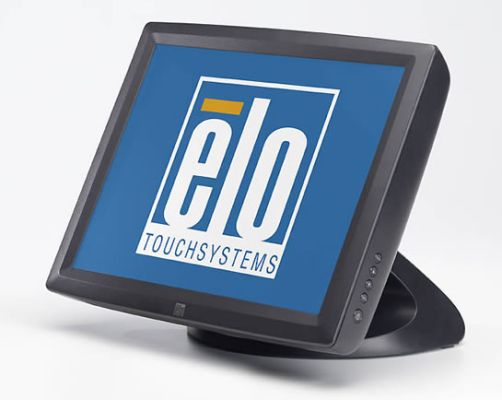

1522L 15" Touchscreen Monitor (Discontinued October 2012)
Cómo comprar

Overview

The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, CarrollTouch Infrared, Surface Capacitive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.

Other features.
  • Long lasting product cycle – enclosure controlled by Elo specifications
  • Small integrated design
  • A touchmonitor that can function as a desktop or wall-mountable system
  • Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, and Surface Capacitive Technology
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
  • Touchscreen sealed to resist dirt, dust and splashes
  • "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
  • Controls on the side rather than the front, plus lockout function for public use
  • Choice of short or tall monitor stand
  • Choice of gray or beige finish
  • Mounting holes on stand bottom for tabletop security
  • Stand removable, VESA mounting option
  • Worldwide agency approvals
  • Security lock receptacle
  • 3 year warranty

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E136451
    AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E407449
    AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E993389
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E172222
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E317038
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E460428
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E869591
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E195812
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E337897
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E576670
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E592262
    IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E626377
    IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E664329
    IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E889598

    Color del empaque

    Dark Gray or Beige

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
    Reconocimiento Acústico de Pulso - Solo Toque
    CarrollTouch Infrared Technology

    Tamaño de la diagonal

    15'' diagonal, matriz activa TFT LCD (LED)

    Relación de aspecto

    4:3

    Área activa

    12.0" x 9.0" / 304mm x 228mm

    Resolución

    1024 x 768 at 60 Hz

    Otras resoluciones disponibles

    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Ángulo de visión

    Horizontal: ±70° o 140° total / Vertical: ±60° o 120° total

    Cantidad de colores

    16.7 millones

    Brillo (tipico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    Acoustic Pulse Recognition: 230 nits
    CarrollTouch: 230 nits
    IntelliTouch: 230 nits

    Tiempo total de respuesta (tipico)

    12 msec

    Radio de contraste

    500:1

    Interface táctile

    USB: E136451, E407449, E993389, E172222, E317038, E460428, E869591, E195812, E337897, E576670, E592262, E626377, E664329, E889598

    Pantalla en pantalla (OSD)

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
    Languages: English, French, German, Spanish, Japanese
    Lockouts: power, user controls

    Altavoces

    Two watt/channel speakers located in display head

    Formato de entrada de video

    Analog VGA

    Entrada del conector para video señal

    Mini D-Sub 15-Pin VGA type

    Consumo de energía (típico)

    30W

    Fuente de alimentación

    Internal AC, Optional external DC (power brick)

    Voltaje de entrada

    AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

    Conector de entrada de audio

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Frecuencia de entrada

    Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz

    Dimensiones del monitor (con soporte)

    14.0" x 11.3" x 11.0" / 355mm x 286mm x 278mm
    Dimensions vary with stand type and position; see drawing for tall stand dimensions

    Dimensiones de la caja de envio

    Short stand: 17.53" x 13.00" x 14.97" / 445mm x 330mm x 380mm
    Tall stand: 17.53" x 11.03" x 17.34" / 445mm x 280mm x 440mm

    Peso (con soporte)

    Short stand: 14.3 lbs / 6.5 kg
    Tall stand: 14.9 lbs / 6.8 kg

    Peso de envío (con soporte)

    Short stand: 19.6 lbs / 8.9 kg
    Tall stand: 20.2 lbs / 9.2 kg

    Temperatura de operación

    0°C to 40°C / 32°F to 104°F

    Temperatura de almacenamiento

    -20°C to 60°C / -4°F to 140°F

    Humedad

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Capacidad de sellado

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

    50.000 horas demostradas

    Opciones de Soporte

    Tilt, removable, short or tall stand

    Opciones de montaje

    75mm VESA mount

    Otras características

    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Garantía

    3 años

    Aprobaciones y declaraciones reglamentarias

    EMC: CE, C-Tick, FCC, VCCI (Class B)
    Safety: CB, CE, cULus, S (Argentina), TÜV T Mark

    Cables de energía

    North American and European AC power cables are included.

    For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.

    AC power cables for power brick are also available at additional cost:

    United States: Elo P/N - E042259
    Europe: Elo P/N - E690013
    United Kingdom: Elo P/N - E235317

    Caja de fuente de energía opcional

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E137360, is available at additional cost.

    Pluma Stylus IntelliTouch Opcional

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.

    Cables táctiles/de video

    All appropriate cables are included and are detachable.

    Periféricos opcionales

    Lector de banda magnética (MSR gris oscuro) - Elo P/N: E560084
    Lector de banda magnética (Beige) - Elo P/N: E895934
