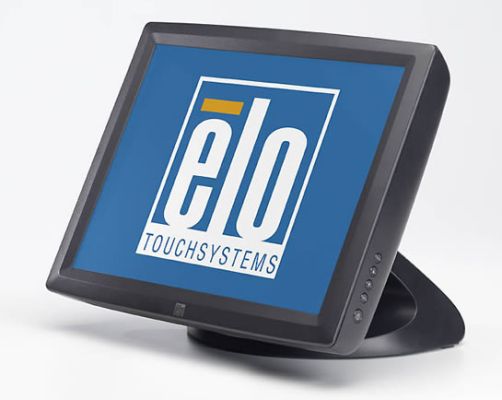

1522L 15" Touchscreen Monitor (Discontinued December 2013)
Overview
The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.
Other features.
- Long lasting product cycle – enclosure controlled by Elo specifications
- Small integrated design
- A touchmonitor that can function as a desktop or wall-mountable system
- Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology and IntelliTouch Surface-Wave Technology
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- Touchscreen sealed to resist dirt, dust and splashes
- "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
- Controls on the side rather than the front, plus lockout function for public use
- Choice of short or tall monitor stand
- Choice of gray or beige finish
- Mounting holes on stand bottom for tabletop security
- Stand removable, VESA mounting option
- Worldwide agency approvals
- Security lock receptacle
- 3 year warranty
Presupuesto
-
Técnico
Número(s) de Parte(s)
AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E518492
IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E467495Color del empaque
Dark Gray or Beige
Tecnología y capacidad táctil
Resistiva de 5 hilos (AccuTouch®) - Táctil simple
SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simpleTamaño de la diagonal
15'' diagonal, matriz activa TFT LCD (LED)
Relación de aspecto
4:3
Área activa
12.0" x 9.0" / 304 mm x 228 mm
Resolución
1024 x 768 at 60 Hz
Otras resoluciones disponibles
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzÁngulo de visión
Horizontal: ±70° o 140° total / Vertical: ±60° o 120° total
Cantidad de colores
16.7 millones
Brillo (tipico)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 230 nitsTiempo total de respuesta (tipico)
12 msec
Radio de contraste
500:1
Interface táctile
USB
Pantalla en pantalla (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsAltavoces
Two watt/channel speakers located in display head
Formato de entrada de video
Analog VGA
Entrada del conector para video señal
Mini D-Sub 15-Pin VGA type
Consumo de energía (típico)
30W
Fuente de alimentación
Internal AC, Optional external DC (power brick)
Voltaje de entrada
AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V
Conector de entrada de audio
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Frecuencia de entrada
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Dimensiones del monitor (con soporte)
14.0" x 11.3" x 11.0" / 355mm x 286mm x 278mm
Dimensiones de la caja de envio
Short stand: 17.53" x 13.00" x 14.97" / 445 mm x 330 mm x 380 mm
Tall stand: 17.53" x 11.03" x 17.34" / 445 mm x 280 mm x 440 mmPeso (con soporte)
Short stand: 14.3lbs / 6.5 kg
Tall stand: 14.9lbs / 6.8 kgPeso de envío (con soporte)
Short stand: 19.6 lbs / 8.9 kg
Tall stand: 20.2 lbs / 9.2 kgTemperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
-20°C to 60°C (-4°F to 140°F)
Humedad
Operating: 20-80%
Storage: 5-95%
noncondensingCapacidad de sellado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Opciones de Soporte
Tilt, removable, short or tall stand
Opciones de montaje
75mm VESA mount
Otras características
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacleGarantía
3 años
Aprobaciones y declaraciones reglamentarias
EMC: CE, C-Tick, FCC, VCCI (Class B)
Safety: CB, CE, cULus, S (Argentina), TÜV T MarkCable de energía AC
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.
AC power cables for power brick are also available at additional cost:
United States - Elo P/N: E042259
Europe - Elo P/N: E690013
United Kingdom - Elo P/N: E235317Caja de fuente de energía opcional
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E757851, is available at additional cost.
Pluma Stylus IntelliTouch Opcional
D82064-000, available at additional cost.
Cables táctiles/de video
All appropriate cables are included and are detachable.
Periféricos opcionales
Lector de banda magnética (MSR gris oscuro) - Elo P/N: E560084
Lector de banda magnética (Beige) - Elo P/N: E895934
