1517L 15" Touchscreen Monitor (Discontinued December 2018)
Overview

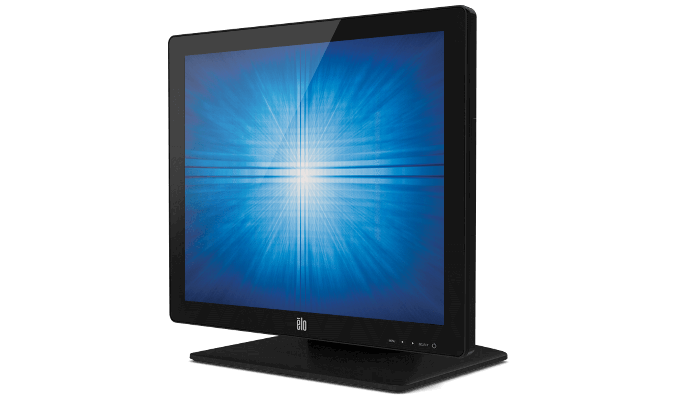

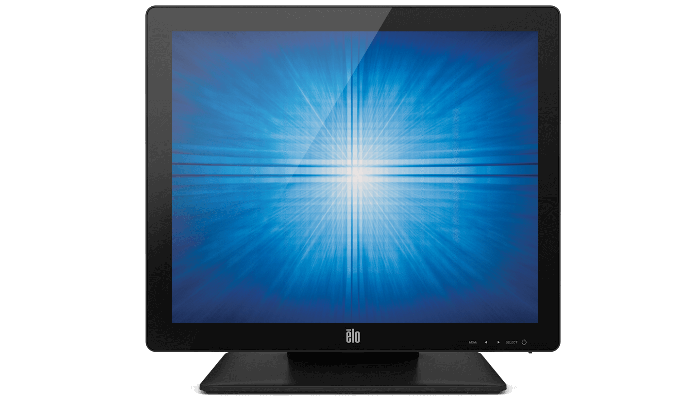

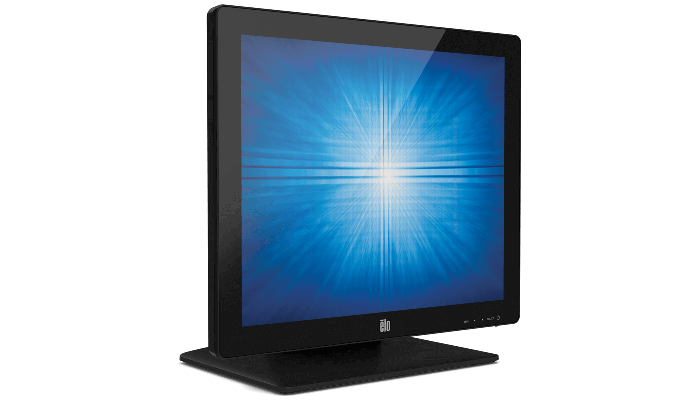

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch.The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. |
 |
 |
MSR ready.The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. |

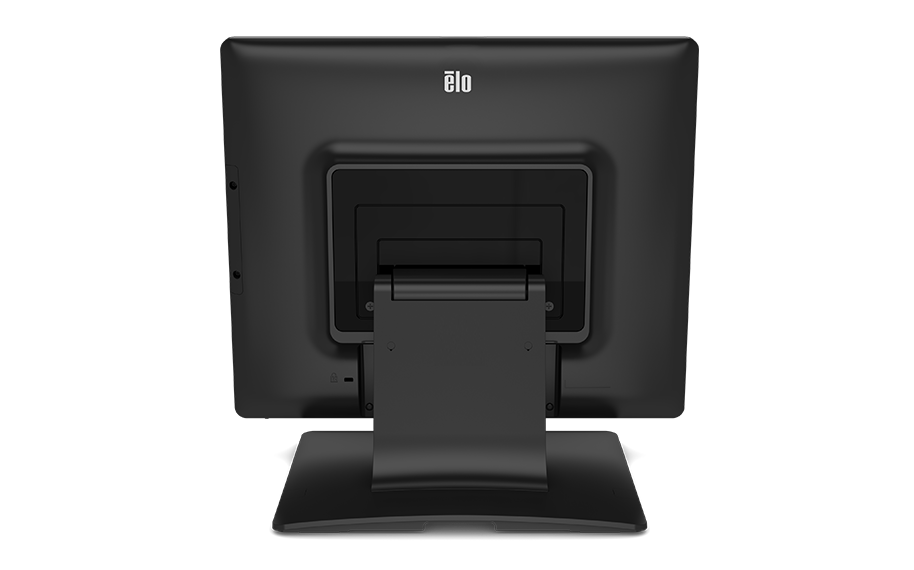

Flexible mounting.The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security. |
 |
Other features.
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 12W, internal and external power options
- Three-year standard warranty
Presupuesto
-
Técnico
Número(s) de Parte(s)
PCAP Black Antiglare - E648912
Color del empaque
Negro
Tecnología y capacidad táctil
PCAP (TouchPro® capacitiva proyectada) - 10 Táctil
Tamaño de la diagonal
15'' diagonal, matriz activa TFT LCD (LED)
Grosor del monitor
1.7" / 43mm
Relación de aspecto
4:3
Área activa
8.98" x 11.97" / 228.10mm x 304.13mm
Resolución
1024x768 @ 60Hz, 75Hz
Otras resoluciones disponibles
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75HzÁngulo de visión
Horizontal: ± 80° o 160° total / Vertical: 70°/80° o 150° total
Cantidad de colores
16.2 millones
Brillo (tipico)
LCD panel: 300
TouchPro PCAP: 270 nitsTiempo total de respuesta (tipico)
23 msec
Radio de contraste
800:1
Interface táctile
Serial (RS232) and USB
Pantalla en pantalla (OSD)
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, PowerFormato de entrada de video
Analog VGA on Female DB-15 connector
Entrada de video frecuencia
Horizontal: 31.5-60 kHz
Vertical: 56-75 HzConsumo de energía (típico)
Monitor Only
ON: 10.5W
SLEEP: 3.0W
OFF: 0.5WFuente de alimentación
Optional AC-DC power adapter sold for this monitor
Voltaje de entrada
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Conector de entrada de audio
AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
Adaptador de conector de salida
IEC 60320 C14
Rango de voltaje de entrada del adaptador
100-240VAC, 50/60Hz
Dimensiones del monitor (con soporte)
14.1" x 7.8" x 12.5" / 358mm x 197mm x 319mm
Dimensiones de la caja de envio
19.2" x 9.1" x 19.1" / 487mm x 231mm x 485mm
Peso sin empaque
9.48 lbs / 4.3 kg
Peso con empaque
16.09 lbs / 7.3 kg
Temperatura de operación
0°C to 40°C / 32°F to 104°F
Temperatura de almacenamiento
20°C to 60°C / -4°F to 140°F
Humedad
Operating: 20% to 80%
Storage: 10% to 90%Capacidad de sellado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)
50.000 horas demostradas
Opciones de montaje
75 mm VESA mount
Capped through-mount holesOtras características
Security lock receptacle
Garantía
3 años
Opciones de servicio extendido
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Aprobaciones y declaraciones reglamentarias
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
¿Qué hay en la caja?
QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand Base assembly, Filler Plate
Fuente de alimentación de reemplazo de CC
The monitor may be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.
Cable de energía AC
NA and EU power cables included. United Kingdom AC power cables are included with the part numbers available for the EMEA region.
China: E030476
Japan: E849156 (3-pin to 2-pin adapter: E351985)
UK: E235317
Taiwan: E637694Opción de pluma PCAP opcional
E066148
Cables táctiles/de video
Detachable touch and video cables are included.
Periféricos opcionales
Lector de banda magnética (MSR Negro) - Elo N/P: E500356
Soportes, monturas y kits
Placa de montaje VESA de 1517L (negro) - Elo N/P: E000404
Soporte de montaje para 0700L como pantalla orientada hacia atrás - Elo N/P: E332358
1517L replacement table stand (blanco) - Elo N/P: E483197
1517L replacement table stand (negro) - Elo N/P: E264383
