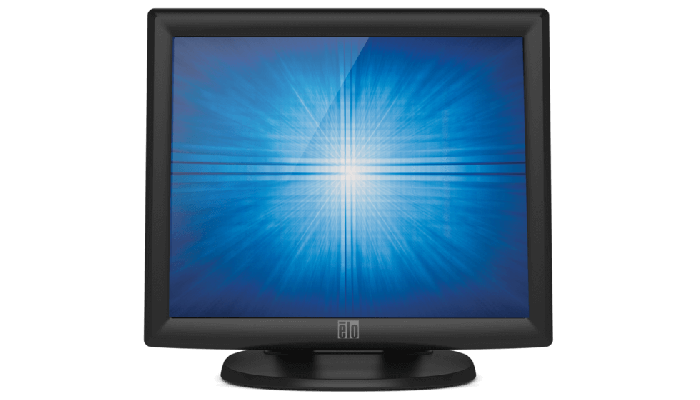

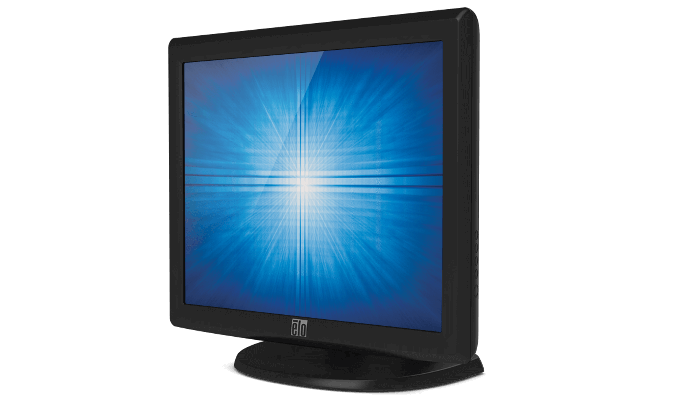

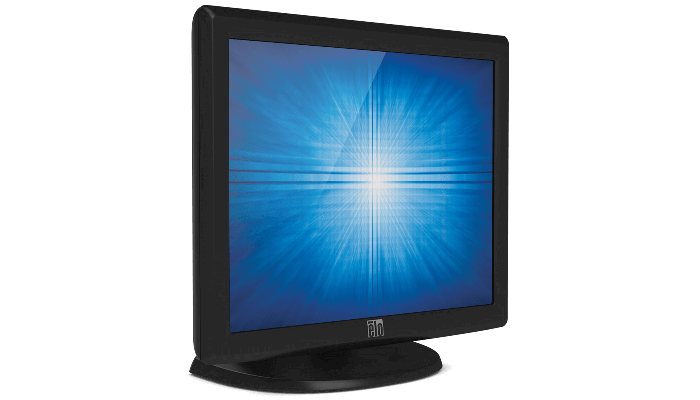

1515L 15" Touchscreen monitor (Discontinued March 2015)
Cómo comprar

Overview

The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo Touch Solutions. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touchscreen technologies: AccuTouch® five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch® pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; Acoustic Pulse Recognition for a pure-glass surface that recognizes sound from both hard and soft stylus touches; projected capacitive for a durable, zero-bezel, glass-to-edge surface with multi-touch*.

Other features.
  • Economical and reliable
  • Up to 1024 x 768 resolution at 75 Hz
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), Acoustic Pulse Recognition Technology or projected capacitive (PCAP) zero-bezel touchscreen
  • Optional ergonomic 3 stripe MSR available in two versions - USB with keyboard emulation and USB with human interface device (HID) class specification 1.1
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Internal power supply
  • Worldwide agency approvals

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (China) - E183106
    AccuTouch (Americas) - E290484
    Acoustic Pulse Recognition (Americas) - E176383
    Acoustic Pulse Recognition (Americas) - E538481
    Acoustic Pulse Recognition (China) - E557524
    Acoustic Pulse Recognition (EMEA) - E817158
    Acoustic Pulse Recognition (EMEA) - E778289
    IntelliTouch (Americas) - E036936
    IntelliTouch (China) - E447013

    Color del empaque

    Negro

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
    PCAP (TouchPro® capacitiva proyectada) - Táctil dual
    Reconocimiento Acústico de Pulso - Solo Toque

    Tamaño de la diagonal

    15'' diagonal, matriz activa TFT LCD (LED)

    Relación de aspecto

    4:3

    Área activa

    12.0" x 9.0" / 304 mm x 228 mm

    Resolución

    1024 x 768

    Otras resoluciones disponibles

    1024 x 768 60, 70, 75 Hz
    1024 x 768 65 Hz (Sun)
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 350 70 Hz
    640 x 480 60, 72, 75 Hz
    640 x 480 66 Hz (Mac)

    Ángulo de visión

    Horizontal: ±70° o 140° total / Vertical: 65°/60° o 125° total

    Cantidad de colores

    16.7 millones

    Brillo (tipico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    Acoustic Pulse Recognition: 225 nits
    IntelliTouch: 225 nits
    Projected Capacitive: 225 nits

    Tiempo total de respuesta (tipico)

    11.7 msec

    Radio de contraste

    500:1

    Pantalla en pantalla (OSD)

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
    Languages: English, German, Spanish, Japanese, French Lockouts: power, user controls

    Formato de entrada de video

    Analog VGA

    Entrada del conector para video señal

    Mini D-Sub 15-Pin VGA type

    Consumo de energía (típico)

    30W

    Fuente de alimentación

    Internal AC, Optional external DC (power brick)

    Voltaje de entrada

    AC: 100-240 VAC, 50/60 Hz / DC: +12VDC ±5%

    Conector de entrada de audio

    AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Frecuencia de entrada

    Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz

    Dimensiones del monitor (con soporte)

    13.8" x 12.2" x 6.9" / 350 mm x 310 mm x 175 mm
    Dimensions vary with stand position and options selected

    Dimensiones de la caja de envio

    17.52" x 14.96" x 10.24" / 445mm x 380 mm x 260 mm

    Peso (con soporte)

    10.6 lb / 4.8 kg

    Peso (sin soporte)

    7.3 lb / 3.3 kg

    Peso de envío (con soporte)

    15.4 lb / 7.0 kg

    Temperatura de operación

    0°C to 40°C / 32°F to 104°F

    Temperatura de almacenamiento

    -20°C to 60°C / -4°F to 140°F

    Humedad

    Operating: 20%-80%
    Storage: 10%-90%

    Capacidad de sellado

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

    50.000 horas demostradas

    Opciones de Soporte

    Removable

    Opciones de montaje

    75 mm VESA mount
    Threaded-through mounting holes, under stand

    Otras características

    Security lock receptacle

    Garantía

    3 años

    Aprobaciones y declaraciones reglamentarias

    North America/Worldwide: UL, cUL ,FCC, CE, Semko or Demko, VCCI, ICES, C-TICK, MPRII, Argentina S-Mark

    Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark, BSMI, CCC, KC, China RoHS

    Cables de energía

    A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.

    Fuente de alimentación de reemplazo de CC

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E757851, is available at additional cost. AC power cables for power brick are also available at additional cost:

    United States: Elo P/N - E042259
    Europe: Elo P/N - E690013
    United Kingdom: Elo P/N - E235317

    Cable de energía AC

    AC power cables for power brick are also available at additional cost:

    United States: Elo P/N - E042259
    Europe: Elo P/N - E690013
    United Kingdom: Elo P/N - E235317

    Pluma Stylus IntelliTouch Opcional

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface acoustic wave touch technology. Elo P/N: D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.

    Cables táctiles/de video

    Detachable touch and video cables are included.

    Periféricos opcionales

    Lector de banda magnética (MSR) - Elo P/N: E623874

    Stand opcional

    Elo P/N: E245090, available at additional cost.
