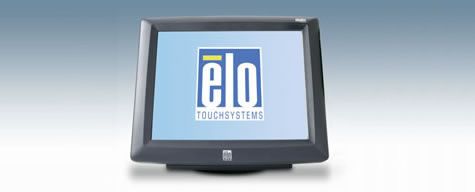

1229L 12" Touchscreen Monitor (Discontinued August 2009)
Cómo comprar

Overview

The 1229L multifunction touchmonitor may be ordered with up to three integrated peripherals, including an ergonomically-placed magnetic stripe reader (MSR), biometric fingerprint recognition device, and a rear-facing customer display. All are incorporated into the monitor housing and designed to flow with its elegant styling. Available with a choice of touch technologies, the 1229L is fully configurable for a variety of applications in the retail, hospitality, medical, gaming, and amusement markets where its compact design efficiently saves valuable work space as well as minimizing connections.

Other features.
  • Higher brightness, better contrast, and wider viewing angle than most 12" LCDs
  • "Designed for touch" features such as a stable tilt stand
  • Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch® Surface-Wave Technology or Surface Capacitive Technology
  • Optional ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version
  • Optional rear-facing customer display
  • Optional biometric fingerprint recognition device
  • Integrated USB hub with two available USB connections. Also allows a single USB cable to carry the touch signal, MSR and fingerprint data, and output to the customer display. The serial version has cables/external connectors to carry the touch and MSR data.
  • Single power supply for all optional devices
  • Cables hidden from user's view
  • Built-in speakers located in display head
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Mounting holes on stand bottom for tabletop security
  • Stand removable, VESA mounting option
  • Controls on the side rather than the front, plus lockout function for public use
  • Sealed touchscreen
  • Diagnostic LEDs for touch and video
  • Long-lasting product cycle
  • Worldwide agency approvals

Presupuesto

  • Técnico

    Número(s) de Parte(s)

    AccuTouch (Dual serial/USB, Antiglare) - E742732
    AccuTouch (Serial, Antiglare) - E984449
    AccuTouch (Serial, Antiglare) - E015811
    AccuTouch (USB, Antiglare) - E607817
    AccuTouch (USB, Antiglare) - E518641
    AccuTouch (USB, Antiglare) - E263847
    AccuTouch (USB, Antiglare) - E187592
    AccuTouch (USB, Antiglare) - E927973
    IntelliTouch (Dual serial/USB, Antiglare) - E943243
    IntelliTouch (Serial, Antiglare) - E384663
    IntelliTouch (Serial, Antiglare) - E437198
    IntelliTouch (Serial, Antiglare) - E213793
    IntelliTouch (USB, Antiglare) - E193472
    IntelliTouch (USB, Antiglare) - E329070
    IntelliTouch (USB, Antiglare) - E811391
    IntelliTouch (USB, Antiglare) - E948271
    IntelliTouch (USB, Antiglare) - E907330
    IntelliTouch (USB, Antiglare) - E488431
    IntelliTouch (USB, Antiglare) - E363364
    IntelliTouch (USB, Antiglare) - E737600
    Surface capacitive (Dual serial/USB, Antiglare) - E118276
    Surface capacitive (USB, Antiglare) - E826528

    Color del empaque

    Gris oscuro

    Tecnología y capacidad táctil

    Resistiva de 5 hilos (AccuTouch®) - Táctil simple
    SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
    Surface Capacitive (SCAP) - Single Touch

    Tamaño de la diagonal

    12.1'' diagonal, matriz activa TFT LCD (LED)

    Relación de aspecto

    4:3

    Área activa

    9.7" x 7.3" / 246 mm x 185 mm

    Resolución

    800 x 600 at 60 Hz

    Otras resoluciones disponibles

    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Ángulo de visión

    Horizontal: ±65° or 130° total / Vertical: 50°/45° or 95° total

    Cantidad de colores

    16.2 millones

    Brillo (tipico)

    LCD panel: 350 nits
    AccuTouch: 287 nits
    IntelliTouch: 322 nits
    Surface capacitive: 294 nits

    Tiempo total de respuesta (tipico)

    45 msec

    Radio de contraste

    450:1

    Formato de entrada de video

    Analog VGA

    Entrada del conector para video señal

    Mini D-Sub 15-Pin VGA type

    Interface táctile

    Dual serial/USB: E742732, E943243, E118276
    Serial: E984449, E015811, E384663, E437198, E213793
    USB: E607817, E518641, E263847, E187592, E927973, E193472, E329070, E811391, E948271, E907330, E488431, E363364, E737600, E826528

    Fuente de alimentación

    External DC (power brick)

    Voltaje de entrada

    DC: 12 VDC at 4.0 amps max.

    Conector de entrada de audio

    DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Frecuencia de entrada

    Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz

    Consumo de energía (típico)

    Monitor: 20 W
    VFD customer display: 3 W
    USB fingerprint reader: 0.5 W
    USB magnetic stripe reader: 0.5 W
    2 USB external ports power when loaded: 5 W
    Total with all possible accessories: 29 W

    Altavoces

    Two watt/channel speakers located in display head

    Pantalla en pantalla (OSD)

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, V-position, H-position, recall defaults RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, resolution
    Languages: English, French, German, Spanish, Japanese
    Lockouts: power, user controls

    Dimensiones del monitor (con soporte)

    13.9" x 11.6" x 11.8" / 353mm x 295mm x 300mm

    Dimensiones de la caja de envio

    18.50" x 18.50" x 13.00" / 470mm x 470mm x 330mm

    Peso (con soporte)

    11.9 lbs / 5.4 kg

    Peso de envío (con soporte)

    19.8 lbs / 9.0 kg

    Temperatura de operación

    0°C to 40°C / 32°F to 104°F

    Temperatura de almacenamiento

    -20°C to 60°C / -4°F to 140°F

    Humedad

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Capacidad de sellado

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Opciones de Soporte

    Tilt, removable

    Opciones de montaje

    75 mm VESA mount
    Optional stability plate

    Otras características

    Energy save mode (less than 2 watts)
    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Vida de la lámpara de contraluz

    Typical 50,000 hours to half brightness

    Garantía

    3 años

    Aprobaciones y declaraciones reglamentarias

    UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick

    Cables de energía

    A North American power cable and a European power cable are included.

    For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.

    Fuente de alimentación de reemplazo de CC

    Elo p/n: E137360, available at additional cost.

    Pluma Stylus IntelliTouch Opcional

    D82064-000, available at additional cost.

    Cables táctiles/de video

    All appropriate cables are included and are detachable. Serial versions include an RJ45 to DB9 serial conversion cable.

    Stability Plate

    Mounts to the pedestal of the monitor to increase stability - Elo p/n: C41696-000, available at additional cost.
